Morphological characterization of the AlphaA- and AlphaB-crystallin double knockout mouse lens

  • Daniel L Boyle1Email author,
  • Larry Takemoto1,
  • James P Brady2 and
  • Eric F Wawrousek3
BMC Ophthalmology20033:3

https://doi.org/10.1186/1471-2415-3-3

Received: 3 December 2002

Accepted: 24 January 2003

Published: 24 January 2003

Abstract

Background

One approach to resolving some of the in vivo functions of alpha-crystallin is to generate animal models where one or both of the alpha-crystallin gene products have been eliminated. In the single alpha-crystallin knockout mice, the remaining alpha-crystallin may fully or partially compensate for some of the functions of the missing protein, especially in the lens, where both alphaA and alphaB are normally expressed at high levels. The purpose of this study was to characterize gross lenticular morphology in normal mice and mice with the targeted disruption of alphaA- and alphaB-crystallin genes (alphaA/BKO).

Methods

Lenses from 129SvEvTac mice and alphaA/BKO mice were examined by standard scanning electron microscopy and confocal microscopy methodologies.

Results

Equatorial and axial (sagittal) dimensions of lenses for alphaA/BKO mice were significantly smaller than age-matched wild type lenses. No posterior sutures or fiber cells extending to the posterior capsule of the lens were found in alphaA/BKO lenses. Ectopical nucleic acid staining was observed in the posterior subcapsular region of 5 wk and anterior subcapsular cortex of 54 wk alphaA/BKO lenses. Gross morphological differences were also observed in the equatorial/bow, posterior and anterior regions of lenses from alphaA/BKO mice as compared to wild mice.

Conclusion

These results indicated that both alphaA- and alphaB-crystallin are necessary for proper fiber cell formation, and that the absence of alpha-crystallin can lead to cataract formation.

Background

Alpha-Crystallin is comprised of two polypeptides, alphaA-crystallin (alphaA) and alphaB-crystallin (alphaB), which share 55% amino acid sequence homology [1]. They are the most abundant proteins in lens fiber cells [2, 3] and exist as heteroaggregates of approximately 800 kDa that can undergo inter-aggregate subunit exchange [4]. The expression of these two proteins in the lens epithelium, however, is not uniform throughout different regions of the anterior epithelium. AlphaB expression is detected in central epithelium and increases from the central to elongation zones, where epithelial cells differentiate into fiber cells. AlphaA, however, is not detected in the central epithelium. The relative proportion of alphaA and alphaB changes from a molar ratio of 1:3 in the pericentral and germative zones to a molar ratio of 3:1 in the elongation zone and fiber cells [2, 3]. These differences in the relative proportions of alphaA and alphaB within the lens suggest different functions for the two subunits in the developing lens.

Prior to the 1990's, alpha-crystallin was thought to be a structural protein whose major cellular function was to produce a dense solution necessary for the refraction of light in the lens. During the early 1990's, alpha-crystallin was shown to act as a molecular chaperone, binding to partially denatured proteins, both in vitro [5] and probably in vivo [6], to inhibit further denaturation and aggregation of lens proteins. AlphaA and alphaB were also shown to have sequence homology with several other proteins that are members of the small heat shock protein (hsp) family [7]. Moreover, expression of alpha-crystallin, particularly alphaB, was shown to not be restricted to the lens. AlphaB was found to be expressed at significant levels in a variety of nonlenticular tissues, while alphaA has only been detected in small amounts in a few other tissues such as retina, spleen and thymus [812]. Collectively, these findings have challenged the dogma that alpha-crystallin is purely a structural protein necessary for light refraction, and have led to the realization that alpha-crystallin may have a variety of biological functions in the lens.

A much broader scope of cellular functions of alpha-crystallin in lens is inferred from in vitro observations. Both alphaA and alphaB can bind specifically to actin, in vitro [13] and in vivo [14]. Although actin filament formation has been shown to be necessary for differentiation of lens epithelial cells [15], the significance of alpha-crystallin's interaction with actin in differentiation is not known. In the lens, alpha-crystallin also associates with type III intermediate filament proteins and the beaded filament proteins CP49 and CP115, and correct beaded filament assembly has been shown depend on the presence of alpha-crystallin [16]. Beaded filament mRNA levels are greatly increased in differentiating lens epithelium and have been suggested as a pan-specific marker for lens fiber development [17]. Alpha-crystallin has also been shown to interact directly with DNA [18]. In transfected CHO cells, alphaB has also been shown to ectopically localize to interphase nuclei, suggesting a role for this protein in the nucleus [19]. A nuclear role for alphaB in the lens was supported by the findings that a subset of lens epithelial cells derived from alphaB knockout mice demonstrated hyperproliferation and genomic instability [20]. In addition, the administration of exogenous alpha-crystallin to primary bovine lens epithelial cell cultures resulted in the formation of lentoid bodies, consistent with a role for these proteins in lens differentiation [21]. These findings indicate that alpha-crystallin may have a multitude of in vivo functions.

One approach to resolving some of the in vivo functions of alpha-crystallin is to generate animal models where one or both of the alpha-crystallin gene products have been eliminated. Brady et al. [22] demonstrated, by targeted disruption of the mouse alphaA gene, that this protein was essential for the maintenance of lens transparency, possibly by maintaining the solubility of alphaB, or associated proteins, in the lens. These lenses were also reported to be smaller in equatorial and light axial dimensions than age matched wild type lens. It was not possible using the techniques employed in the study to determine if the smaller lenses were due to reduced volume or number of fiber cells. Targeted disruption of the mouse alphaB gene resulted in lenses similar in size to aged-matched wild type lens. Moreover, no cataract formation was observed in the alphaB knockout lenses. These animals have muscle cell abnormalities, severe postural anomalies, selective muscle degeneration, and shorter life spans compared to normal controls [23].

In the single alpha-crystallin knockout mice, the remaining alpha-crystallin may fully or partially compensate for some of the functions of the missing protein, especially in the lens, where both alphaA and alphaB are normally expressed at high levels. The objectives of the current report were to characterize gross morphology of young (5 wk) and old (54 wk) mouse lenses with targeted disruption of both the alphaA and alphaB genes, in comparison to age matched wild type lenses, using scanning electron microscopy (SEM) and confocal microscopy, to elucidate the possible functions of alpha-crystallin in the lens. The results indicate that alpha-crystallin is necessary for proper fiber cell formation and resulting lens transparency.

Methods

Lenses

The wild type mouse strain used in this study was the 129SvEvTac mouse. Lenses examined were from 5(8 lenses), 46(8 lenses) and 72(6 lenses) wk old mice.

AlphaA/BKO was generated by cross breeding alphaAKO-127 [22] and alphaBKO-168 mice [23], also in a 129Sv background. These mice also lack the HSPB2 gene product [23]. Lenses examined were from 5 wk (6 lenses) and 54 wk (16 lenses) old mice. All animals were treated in accordance with the Association for Research in Vision and Ophthalmology Statement for the Use of Animals in Ophthalmic and Vision Research.

Immediately after euthanizing animals, eyes were enucleated. A scalpel blade was then used to make a small incision into the anterior chamber near the equator and then both eyes from individual animals were immersed in 5 ml fixative (2% (w/v) paraformaldehyde and 2% glutaraldehyde (v/v) in 0.1 M sodium cacodylate buffer, pH 7.2). Eyes were fixed for at least 24 hr at room temperature (RT) prior to dissection of the lenses. At this time, equatorial and axial dimensions of lenses and gross lenticular appearance were recorded. Statistical analyses on data consisted of Student's t-test, means and standard deviation, using the statistical software package StatMost (Dataxiom Software Inc., Los Angeles, CA).

Confocal microscopy

Lenses were vibratome sectioned into 100–200 μm thick sections along the optical (anterior to posterior) or equatorial axes. Thick sections were fixed in 2% (w/v) paraformaldehyde and 2% glutaraldehyde (v/v) in 0.1 M sodium cacodylate buffer pH 7.2 at RT for 24 hrs then washed several times in Tris buffered saline (0.5 M Tris, 150 mM NaCl, pH 7.4). To visualize lipid membranes, sections were stained with 1,1'-dioctadecyl-3,3,3',3'-tetramethylindocarbocyanine perchlorate ('DiI';DiIC18; Molecular Probes) as previously described [24]. Sections were then washed several times with Tris buffered saline, and nucleic acids were stained by incubating sections in TBS containing 1 μM SYTOX Green (Molecular Probes) for 10 min at RT followed by several washes with TBS prior to confocal imaging.

Lens sections were viewed on a Zeiss laser scanning confocal microscope model LSM 410 equipped with an Axiovert 100 inverted microscope, an Argon-Krypton 488/568/647 laser, a KP line selection filter, a FT 488/568 Dichroic beam splitter, a FT 560 Dichroic beam splitter, a LP 590 emission filter for viewing DiI, a BP 515–540 emission filter for viewing SYTOX green, and the software package LSM 3.993.

Scanning electron microscopy

Lenses bisected along the optical axes were immersion fixed in 2% (w/v) paraformaldehyde and 2% glutaraldehyde (v/v) in 0.1 M sodium cacodylate buffer pH 7.2 at RT for 24 hrs. Samples were then washed several times with distilled water and postfixed in 1% (v/v) aqueous osmium tetroxide at RT for 1 hr. Lens halves were dehydrated in an ascending ethanol series from 50–100 %. Once lens halves were in 100% ethanol, they were critical point dried in carbon dioxide in a Samdri-790B (Tousimis Research Corp., Rockville, MD). Critical point dried lens halves were secured on aluminum stubs with double sided tape. Mounted specimens were then sputter coated with gold and viewed on a Hitachi S-3500N scanning electron microscope (Tokyo, Japan) at 1–5 kV. This microscope is equipped with Hitachi's patented "Dual-Bias" which allows extremely high emission currents at acceleration voltages of 5 kV and lower.

Results

Equatorial and axial (sagittal) dimensions of lenses, and gross lenticular appearance, were recorded (Table 1). AlphaA/BKO lenses at 5 wks of age were significantly smaller (p < 0.05), both equatorially and axially, than 5 wk old wild type lenses and remain smaller throughout life. Fifty-four wk old alphaA/BKO lenses were much smaller than similarly aged normal lenses, and were similar in size to 5 wk old wild type lenses. Both the 5 wk old wild type lenses and the 54 wk old alphaA/BKO lenses were significantly smaller (p < 0.01) than the 46 or 72 wk old wild type lenses. AlphaA/BKO lenses at 5 wks of age exhibited vacuoles at the equatorial region (Figure 1A see arrows) and an area of slight light scatter at the posterior subcapsular regions (Figure 1B see arrowheads). By 54 wks of age, alphaA/BKO lenses exhibited dense cortical and nuclear cataracts (Figure 1C). No posterior sutures were observed in any of the alphaA/BKO lenses examined. All wild type lenses were transparent upon removal from the eye (Figure 1D,1E and 1F) and had well defined posterior sutures.
Figure 1

Light micrographs of lenses dissected from fixed eyes of alphaA/BKO (A-C) and wild type (D-F) mice. All micrographs were generated using a 4 × /0.10 objective on a Zeiss LSM 410 using transmitted light mode. Images in (A&B) were enlarged compared to images (C-F) (see scale bars). For all micrographs except (B) the objective focal point was set at the equatorial plane of the lens, while (B) was set at the posterior pole of the lens. (A&B) Representative micrographs of lenses from 5 wk alphaA/BKO mice, showing changes in the equatorial (A) and posterior sub capsular (B) regions. (C) Representative micrograph of 54 wk alphaA/BKO mouse lens showing dense whole lens cataract. (D-F) Representative clear lenses from 5 wk (D), 46 wk (E), and wk 72 (F) wild type mice. Arrows (A) indicate vacuoles in the equatorial region of a representative 5 wk alphaA/BKO lens. The arrowheads (B) indicate an area of minor light scattering deep to the posterior capsule in a representative 5 wk alphaA/BKO lens.

Table 1

Dimensions and gross lenticular appearance of lenses.

Lenses

Sample size (n)

Mean +/- standard deviation

Gross lenticular appearance



Axial diameter mm

Equatorial diameter mm



5 wk alphaA/BKO

6

1.3567 +/-0.0321

1.55+/-0.0458

Equatorial and posterior subcapsular light scattering

54 wk alphaA/BKO

6

1.78+/-0.0516

1.87+/-0.0837

Dense whole lens cataract

5 wk wild type

6

1.8625+/-0.0585

1.905+/-0.087

clear

46 wk wild type

6

2.2075+/-0.0929

2.3775+/-0.015

clear

72 wk wild type

6

2.5633+/-0.0252

2.4567+/-0.0058

clear

Examination of mid-axial sections stained with DiI and SYTOX green revealed unique differences in gross morphology and nucleic acid staining between alphaA/BKO lenses and wild type lenses (Figure 2). In five week old alphaA/BKO lenses, Sytox green stained nuclei (green) in the anterior epithelium, equatorial/bow, and posterior subcapsular regions (Figure 2A). Cell nuclei localized to the equatorial/bow region were disorganized as compared to wild type. There were enlarged extracellular spaces between cells in the equatorial/bow region in 5 wk old alphaA/BKO lenses. Fifty-four wk old alphaA/BKO lenses (Figure 2B) did not stain for nucleic acid in the posterior subcapsular region, however, the entire anterior subcapsular lens region stained for nucleic acid (refer to Figure 3I for high magnification/resolution image of this area). A defined equatorial/bow region was not observed in these older lenses, and fiber cells extending to the posterior capsule of the lens were not found. Disorganized cellular material capped the anterior region of the embryonic/fetal nucleus, and a distinctive indentation of the lens mass at the equatorial region was apparent in mid-axial sections as well as whole lenses. In alphaA/BKO lenses the embryonic/fetal nucleus (primary lens fibers) had migrated posteriorly and appeared to be in contact with the posterior capsule. In 5 wk, 46 wk or 72 wk old wild type lenses (Figure 2C,2D and 2E), however, there was no posterior or anterior subcapsular nucleic acid staining and the embryonic-fetal nucleus was centrally located, not in contact with the posterior capsule.
Figure 2

Representative confocal optical sections taken from mid-axial vibratome sections of alphaA/BKO (A&B) and wild type (C-E) lenses. All optical sections were generated using a 4 × /0.10 objective on a Zeiss LSM 410. The red color represents DiI staining (membrane), while the green color represents SYTOX green staining (DNA). (A&B) were taken from 5 wk and 54 wk alphaA/BKO lenses, respectively. (C-E) were taken from 5 wk, 46 wk, and 72 wk wild type lenses, respectively. The arrowheads indicate representative anterior epithelial nuclei stained with SYTOX green.

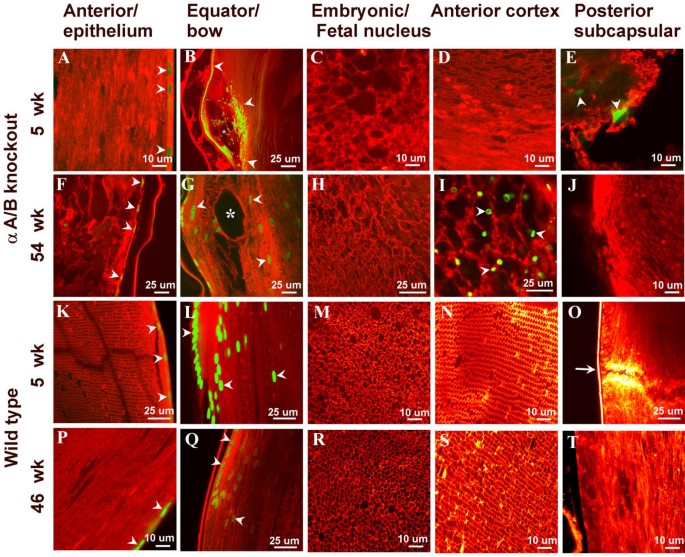

Figure 3

Representative confocal optical sections from alphaA/BKO (A-J) and wild type (K-T) lenses. All optical sections were generated using a 63 × /1.4 objective on a Zeiss LSM 410. The red color represents DiI staining (membrane), while the green color represents SYTOX green staining (DNA). (A-E) are from 5 wk alphaA/BKO lenses. (F-J) are from 54 wk alphaA/BKO lenses. (K-O) are from 5 wk wild type lenses. (P-T) are from 46 wk wild type lenses. (A, F, K, and P) are anterior central cortex and epithelium. (B, G, L, and Q) are equatorial bow region. (C, H, M, and R) are embryonic/fetal nucleus. (D, I, N, and S) are deep anterior cortex. (E, J, O, and T) are posterior subcapsular region. (*) indicates areas devoid of cellular material (B and G). Arrow indicates posterior suture (O). Arrowheads indicate representative nuclei stained with SYTOX green (A, B, E, F, G, I, K, L, P, and Q).

At higher magnification, examination of sections stained with DiI and SYTOX green revealed ultrastructural differences between alphaA/BKO lenses and wild type lenses (Figure 3). Anterior epithelial staining in 5 wk old alphaA/BKO (Figure 3A) and 5 wk old wild type lenses were similar (Figure 3K) with respect to nuclear staining with SYTOX green. However, some differences in 54 wk old alphaA/BKO lenses (Figure 3F) were observed in the central anterior epithelium compared to 5 wk (Figure 3K), 46 wk (Figure 3P), and 72 wk (data not shown) wild type lenses. These differences included changes in central epithelial nuclear staining, nuclear shape and epithelial thickness and continuity. Superficial and deep anterior cortical staining was grossly different between alphaA/BKO (Figure 3A,3D,3F and 3I) and wild type lenses (Figure 3K,3N,3P and 3S). In 5 and 54 wk old alphaA/BKO lenses, superficial and deep anterior cortical regions, stained for lipid membranes, did not reveal any patterns typical of fiber cells cut in cross-section or longitudinal section. In 5 wk alphaA/BKO lenses there was a high density of stained membranes per unit area throughout the cortex, with no nucleic acid staining in these regions. In 54 wk alphaA/BKO lenses, large, irregularly shaped cells were observed, interspersed among regions of high membrane staining density per unit area. These large objects were not vacuoles, because examination of the interior of these structures by transmitted and reflected light microscopy showed that the membranes encompassed cellular material (data not shown). In addition, nucleic acid staining was observed (Figure 3F and 3I) within many of these cells exhibiting large cross-sectional profiles. In the wild type lenses, typical cross-sectional patterns of fiber cells organized in radial columns were observed (Figure 3K,3N,3P and 3S).

Ultrastructural differences at the equatorial/bow region were also observed between alphaA/BKO lenses (Figure 3B and 3G) and wild type lenses (Figure 3L and 3Q). In contrast to wild type lenses (Figure 3L and 3Q), the alphaA/BKO lenses (Figure 3B and 3G) contained large areas devoid of cellular material, their nuclei were not limited to a well defined equatorial/bow region, and ordered radial columns of elongating fiber cells extending from the posterior capsule to the anterior epithelium were not observed. In addition to the equatorial region, ultrastructural differences between alphaA/BKO lenses (Figure 3C and 3H) and wild type lenses (Figure 3M and 3R) were observed in fiber cells of the embryonic and fetal nucleus. In 5 wk alphaA/BKO lenses (Figure 3C), a greater variation in cross sectional diameter was observed, with cell diameters ranging from less than 2 microns up to approximately 25 microns, compared to the 5 wk and 46 wk wild type lenses, whose diameters ranged from less than 2 microns up to approximately 10 microns (Figure 3M and 3R). At 54 wk, these cells in the alphaA/BKO lenses were larger in cross sectional diameter than wild type, and exhibited a much greater variation in the cross sectional size and cell shape.

Cells adjacent to the posterior capsule of 5 wk alphaA/BKO lenses (Figure 3E) exhibited nucleic acid staining, were small and non-elongated, with numerous membrane projections., These were, however, not observed in 54 wk alphaA/BKO lenses. In 5 wk alphaA/BKO lenses, deep to the posterior capsule, larger diameter cells, similar to those observed in the embryonic/fetal nucleus were observed (data not shown). Fiber cells of similar dimension and appearance to embryonic/fetal nuclear fibers were seen at the posterior capsule in 54 wk alphaA/BKO lenses (Figure 3J). In both 5 and 54 wk alphaA/BKO lenses, no posterior sutures could be found in any axial or equatorial vibratome sections examined. Posterior sutures were readily found in vibratome sections of wild type lenses (Figure 3O, arrow). Fiber cells attached to the posterior capsule and extending anteriorly were observed in 5 wk (Figure 3O), 46 wk (Figure 3T) and 72 wk (data not shown) wild type lenses.

SEM confirmed many of the observations made by confocal microscopy. In the equatorial/bow region, a disorganized array of relatively small irregular shaped cells were observed in 5 wk (Figure 4A) and 54 wk (Figure 4D) alphaA/BKO lenses, while elongated fiber cells organized into radial columns, with ball and socket interdigitations, were observed in 5 wk (Figure 4G), 46 wk (Figure 4J) and 72 wk (data not shown) wild type lenses. In the anterior cortical region of 5 wk alphaA/BKO lenses, radial columns of cells with numerous cell surface projections were observed (Figure 4B), but these radial columns were no longer present at 54 weeks of age (Figure 4E). In these older lenses, irregularly shaped, convoluted cells, with no recognizable pattern of organization, were present. In contrast, radial columns of elongated fiber cells of uniform size and shape, with ball and socket interdigitations, were present in the anterior cortical region of 5 wk (Figure 4H), 46 wk (Figure 4K) and 72 week (data not shown) wild type lenses. The posterior subcapsular regions of 5 wk (Figure 4C) and 54 wk (Figure 4F) alphaA/BKO lenses were filled with irregularly shaped cells with numerous cell surface projections. In the fetal/embryonic nucleus, elongated fiber cells with numerous long, finger-like projections and furrowed membranes were evident (not shown). No elongated cells extending from the bow region to the posterior capsule of alphaA/BKO lenses were observed. In contrast, radial columns of elongated fiber cells of uniform size and shape containing ball and socket interdigitations were observed in the posterior subcapsular region in 5 wk (Figure 4I), 46 wk (Figure 4L) and 72 wk (data not shown) wild type lenses, and fiber cells in contact with the posterior capsule could be traced back to the equatorial bow region and anterior epithelium.
Figure 4

Representative scanning electron micrographs of alphaA/BKO (A-F) and wild type (G-L) lenses. (A-C) Representative images from 5 wk alphaA/BKO lenses. (D-F) Representative images from 54 wk alphaA/BKO lenses. (G-I) Representative images from 5 wk wild type lenses. (J-L) Representative images from 46 wk wild type lenses. (A, D, G, and J) Equatorial/bow region. (B, E, H, and K) Anterior cortex. C, (F, I, and L) Posterior subcapsular region.

Discussion

One approach to resolving some of the in vivo functions of alpha-crystallin is to generate animal models where one or both of the alpha-crystallin gene products have been eliminated. Brady et al. [22] demonstrated, by targeted disruption of the mouse alphaA gene, that this protein was essential for the maintenance of lens transparency, possibly by maintaining the solubility of alphaB, or associated proteins, in the lens. These lenses were also reported to be smaller in equatorial and axial dimensions than age matched wild type lens, which was very similar to that which was observed with the double knockout lens. Targeted disruption of the mouse alphaB gene, however, resulted in lenses similar in size to aged-matched wild type lens with no cataracts reported [23]. This indicates that alphaA may play a greater role in maintaining the transparency of the lens then alphaB. In the single alpha-crystallin knockout mice, the remaining alpha-crystallin may fully or partially compensate for some of the functions of the missing protein, especially in the lens, where both alphaA and alphaB are normally expressed at high levels. This was supported by the morphological observation made in this study of no posterior sutures or fiber cells extending to the posterior capsule of the lens, ectopically staining nucleic acids in the posterior subcapsular region of 5 wk and anterior subcapsular cortex of 54 wk, gross morphological differences in the equatorial/bow, posterior and anterior regions of lenses from alphaA/BKO mice as compared to wild mice. None of these morphological differences have been reported in the single alphaA or alphaB knockout mice. It must be noted, however, that the alphaA/BKO mice also lack the HSPB2 gene product [23] and the contribution of this protein to normal lens morphology and functions should not be overlooked. Future studies should address the possible functions of HSPB2 in normal lens.

The results of the current study support the hypothesis that alpha-crystallin plays an active role in the differentiation and growth of lens fiber cells. Normal differentiation of lens fiber cells consists of a progression from a simple cuboidal epithelial cell, containing a nucleus and a minimal numbers of organelles, to a stratified layer of elongated fiber-like cells, devoid of nuclei and organelles. Differentiation of epithelial cells occurs in the equatorial/bow region of the lens, where epithelial cells begin to elongate and differentiate into fiber cells of uniform cellular shape, arranged in radial columns of cells extending from the anterior epithelium to the posterior capsule. This process did not appear to have proceeded normally in lenses lacking alphaA and alphaB. The morphological observations presented in this study demonstrate that fiber cells in lenses lacking alphaA and alphaB fail to elongate symmetrically from the bow region and therefore do not establish the typical "onion skin" conformation in which cells extend from the anterior epithelium to the posterior capsule. Additionally, in lenses from 54 wk alphaA/BKO lenses, there was a persistence of cell nuclei in deeper cortical regions, and ectopic cell nuclei were present in large numbers in the anterior central cortex. At 5 wks of age cell nuclei were present, adjacent to the posterior capsule. These morphological observations are consistent with a defect in the normal differentiation pathway of lens epithelial cells into fiber cells.

It is unlikely that these alterations in alphaA/BKO mouse lenses result from increased susceptibility of these lenses to light-induced damage in the absence of the molecular chaperone protection afforded by alphaA and alphaB in normal lenses. With the normal time of eye opening at approximately 14 days after birth, the 5 wk old mice had their eyes open and lenses exposed to light for only about 3 weeks prior to morphological analysis. Moreover, these animals had been exposed to only animal facility fluorescent lighting and were protected from UV light by plastic cages. If lack of protection from light-induced damage was the major factor affecting the changes in these lenses, then the bulk of the damage should have resided along the visual axis, particularly in the central anterior epithelium and subcapsular cortex in the 5 wk lenses, but this was not the case. In these lenses, gross morphological changes were apparent in the equatorial and posterior subcapsular regions. These changes included posterior subcapsular nucleic acid staining, absence of posterior sutures, and small irregularly shaped cells, not arranged in any discernable pattern, in the equatorial/bow region. Systemic stress factors crossing the blood/aqueous barrier might explain some morphological changes at the equatorial region, but this would not explain nucleic acid staining in the posterior subcapsular region. In the 5 wk alphaA/BKO lenses, nucleic acid staining in the posterior subcapsular region is consistent with either anterior epithelial cells migrating aberrantly to the posterior pole, or primary fiber cells failing to fully differentiate by 5 wks of age. These two possibilities could not be differentiated in the methods employed, and were beyond the objectives of the current study. Future studies are being designed to address which of these two processes might explain nucleic acid staining in the posterior subcapsular region. Staining in this region was not observed in older alphaA/BKO lenses, suggesting that this pattern was transient. The fate of the nucleic acid-containing cells in the posterior capsular region of younger lenses is not known at this time, nor is the morphology of earlier stage lenses. Future studies with defined objectives to address the development and progression of morphological changes seen in this study are being designed. The morphological differences in alphaA/BKO lenses, compared to age matched wild type lenses, were consistent with the hypothesis that alpha-crystallin plays an active role in the differentiation and growth of lens fiber cells. In addition, it was clearly evident that alpha-crystallin is necessary for lens transparency.

The final biological event in a lens epithelial cell's life is the transformation from an epithelial cell into a fiber cell, which occurs at the equatorial/bow region of the lens. The newly forming fiber cell continues to differentiate in the cortex until a mature fiber cell devoid of organelles with suture formation at the ends of the cell is formed. This entire process from epithelial cell to mature fiber cell is defined as lens differentiation. The precise spatial and temporal expression of the crystallin proteins in the developing lens may not be simply a consequence of the differentiation process, but instead may play an important, if not essential, role in the differentiation process itself. The results of the current study support this hypothesis.

The exact in vivo molecular mechanisms, by which alpha-crystallin might influence lens epithelial cell differentiation, and maintenance of lens transparency, remain to be determined. AlphaA and alphaB are members of the shsp family [7]. Previous studies have shown that the alpha-crystallin possesses molecular chaperone activity, binding to partially denatured proteins, both in vitro [5] and probably in vivo [6], to inhibit further denaturation. Although this property may be a major contributor to the maintenance of lens clarity, the early changes in the alphaA/BKO lenses indicate a much broader cellular function for alpha-crystallin. Stress proteins have been shown to be expressed in non-stressed cells during development and differentiation [25]. Hsps were shown to be expressed during the differentiation of mammalian osteoblasts and promelocytic leukemia cells [26]. In addition, hsp expression has been shown to accompany growth arrest in human B lymphocytes [27] and macrophage differentiation of HL 60 cells [28]. During myogenic differentiation, mRNA for alphaB increases in conjunction with the induction of mRNA for myogenin, the earliest known event in myogenesis [29]. The addition of exogenous alpha-crystallin to primary bovine lens epithelium was shown to induce rapid changes in cell shape, leading to the formation of lentoid bodies [21]. These studies strongly suggest that the hsp family of proteins has other functions in addition to protecting proteins and cells during stress.

Alpha-crystallin may play a functional role in the cell nucleus and may have a role in regulating the cell cycle. Several heat shock proteins have been found in cell nuclei in the absence of stress [30], and alpha-crystallin has been shown to interact directly with DNA [18]. AlphaB, expressed in transfected CHO cells, has been shown to ectopically localize to interphase nuclei, suggesting a regulatory role for this protein in the nucleus [19]. A subset of immortalized lens epithelial cells from alphaBKO mice have been shown to hyperproliferate [20] suggesting that alphaB may be important in maintaining genomic stability. In lens epithelium derived from alphaAKO lenses, cell growth rates were reported to be 50% lower compared to wild type [31], suggesting a role for alphaA in regulating the cell cycle. All of these findings raise many questions as to the possible role(s) of alpha-crystallin in the nucleus and in cell cycle regulation during differentiation. In the current study, the observation of a disorganized pattern of nuclei localized to the equatorial bow region of alphaA/BKO lenses, and nucleic acid staining of structures throughout the anterior cortex of 54 wk alphaA/BKO lenses, is consistent with a role for alpha-crystallin in the nucleus.

There is extensive evidence from previous studies demonstrating that alpha-crystallin plays a role in the cytoskeletal organization. Both alphaA and alphaB can bind specifically to actin, both in vitro [13] and in vivo [14]. Actin filament formation has been shown to be necessary for the differentiation of lens epithelial cells [15], however, the significance of alpha-crystallin interaction with actin in differentiation is not known. In the lens, alpha-crystallin also forms a complex with type III intermediate filament proteins and the lens-specific beaded filament proteins CP49 and CP115, which may be critical for proper filament assembly [16]. Beaded filament mRNA levels increase greatly in differentiating lens epithelial cells, and have been suggested as a pan-specific marker for lens fiber cells [17]. It is therefore possible that increased synthesis of alpha-crystallin in epithelial cells early in the differentiation process may have profound effects upon the cytoskeleton, which in turn may profoundly affect cell shape and migration. The lack of cellar organization and uniform cell shape at the equatorial region observed in alphaA/BKO lenses supports this hypothesis. Studies are currently underway to characterize cytoskeletal organization in the alphaA/BKO lens.

Declarations

Acknowledgements

This research was supported in part by a NIH Grant for Vision Research EY02932 awarded to LT.

Authors’ Affiliations

(1)
Division of Biology, Ackert Hall, Kansas State University
(2)
Ocular Gene Therapy, Genetic Therapy, Inc.
(3)
Lab of Molecular & Dev Biology, National Eye Institute, NIH

References

  1. Bloemendal H: The vertebrate eye lens. Science. 1977, 197: 127-138.View ArticlePubMedGoogle Scholar
  2. Rafferty NS: Lens morphology. In: The Ocular Lens: structure, function and pathology. Edited by: Harry Maisel. 1985, Marcel Dekker, Inc, 51-53.Google Scholar
  3. Vermorken AJ, Hilderink JM, van de Ven WJ, Bloemendal H: Lens differentiation. Crystallin synthesis in isolated epithelia from calf lenses. J Cell Biol. 1978, 76: 175-183.View ArticlePubMedGoogle Scholar
  4. Horwitz J, Bova MP, Ding LL, Haley DA, Stewart PL: Lens alpha-crystallin: function and structure. Eye. 1999, Pt 13: 403-408.View ArticlePubMedGoogle Scholar
  5. Horwitz J: Alpha crystallins can function as a molecular chaperone. Proc Natl Acad Sci USA. 1992, 89: 10449-53.View ArticlePubMedPubMed CentralGoogle Scholar
  6. Boyle D, Takemoto L: Characterization of the alpha-gamma and alpha-beta complex: Evidence for in vivo functional role of alpha-crystallin as a molecular chaperone. Exp Eye Res. 1994, 58: 9-16. 10.1006/exer.1994.1190.View ArticlePubMedGoogle Scholar
  7. DeJong WW, Leunissen JAM, Voorter CEM: Evolution of alpha crystallin/small heat-shock protein family. Mol Biol Evol. 1993, 10: 103-126.Google Scholar
  8. Kato K, Shinohara H, Goto S, Inaguma Y, Morishita R, Asano T: Copurification of small heat shock protein with alphaB-crystallin from human skeletal muscle. J Biol Chem. 1992, 267: 7718-7725.PubMedGoogle Scholar
  9. Srinivasan AN, Nagineni CN, Bhat SP: Alpha A-crystallin is expressed in non-ocular tissues. J Biol Chem. 1992, 267: 23337-23341.PubMedGoogle Scholar
  10. Deretic D, Aebersold RH, Morrison HD, Papermaster DS: AlphaA- and alphaB-crystallin in retina. Association wit post-Golgi compartment of frog retinal photoreceptors. J Biol Chem. 1994, 269: 16853-16861.PubMedGoogle Scholar
  11. Dubin RA, Wawrousek EF, Piatigorsky J: Expression of the murine alphaB-crystallin gene is not restricted to the lens. Mol Cell Biol. 1989, 9: 1083-1091.View ArticlePubMedPubMed CentralGoogle Scholar
  12. Bhat SP, Nagineni CN: AlphaB subunit of lens-specific protein alpha-crystallin is present in other ocular and non-ocular tissues. Biochem Biophys Res Commun. 1989, 158: 319-325.View ArticlePubMedGoogle Scholar
  13. Gopalakrishnan S, Boyle D, Takemoto L: Association of actin with alpha crystallin. Trans Kans Acad Sci. 1993, 96: 7-12.View ArticlePubMedGoogle Scholar
  14. DelVecchio P, Mac Elroy K, Rosser M, Church R: Association of alpha crystallin with actin in cultured lens cells. Curr Eye Res. 1984, 3: 1213-9.View ArticleGoogle Scholar
  15. Mousa GY, Trevithick JR: Differentiation of rat lens epithelial cells in culture II. Effects of cytochalasins B and D on actin organization and differentiation. Develop Biol. 1977, 60: 14-25.View ArticlePubMedGoogle Scholar
  16. Carter JM, Hutchenson AM, Quinlan RA: In vitro studies on the assembly properties of the lens proteins C49, CP115: Coassembly with alpha-crystallin but not with vimentin. Exp Eye Res. 1995, 60: 181-92.View ArticlePubMedGoogle Scholar
  17. Ireland ME, Wallace P, Sandilands A, Poosch M, Kasper M, Graw J, Liu A, Maisel H, Prescott AR, Hutcheson AM, Goebel D, Quinlan RA: Up-regulation of novel intermediate filament proteins in primary fiber cells: and indicator of all vertebrate lens fiber differentiation?. Anatom Rec. 2000, 258: 25-33. 10.1002/(SICI)1097-0185(20000101)258:1<25::AID-AR3>3.0.CO;2-C.View ArticleGoogle Scholar
  18. Pietrowski D, Durante MJ, Liebstein A, Schmitt-John T, Werner T, Graw J: alpha-crystallins are involved in specific interactions with murine gamma-D/E/F-crystallin encoding gene. Gene. 1994, 144: 171-178. 10.1016/0378-1119(94)90375-1.View ArticlePubMedGoogle Scholar
  19. Bhat SP, Hale IL, Matsumoto B, Elghanayan D: Ectopic expression of alpha B-crystallin in Chinese hamster ovary cells suggests a nuclear role for this protein. Euro J Cell Biol. 1999, 78: 143-150.View ArticleGoogle Scholar
  20. Andley UP, Song Z, Wawrousek EF, Brady JP, Bassnett S, Fleming TP: Lens epithelial cells derived from alphaB-crystallin knockout mice demonstrate hyperproliferation and genomic instability. FASEB J. 2001, 15: 221-229. 10.1096/fj.00-0296com.View ArticlePubMedGoogle Scholar
  21. Boyle DL, Takemoto L: A possible role for alpha-crystallins in lens epithelial cell differentiation. Mol Vis. 2000, 6: 63-71.PubMedGoogle Scholar
  22. Brady JP, Garland D, Duglas-Tabor Y, Robison WG, Groome A, Wawrousek EF: Targeted disruption of the mouse alphaA-crystallin gene induces cataract and cytoplasmic inclusion bodies containing the small heat shock protein alphaB-crystallin. Proc Natl Acad Sci USA. 1997, 94: 884-889. 10.1073/pnas.94.3.884.View ArticlePubMedPubMed CentralGoogle Scholar
  23. Brady JP, Garland DL, Green DE, Tamm ER, Giblin FJ, Wawrouskek EF: B-crystallin is lens development and muscle integrity: A gene knockout approach. Invest Ophthalmol Vis Sci. 2001, 42: 2924-2034.PubMedGoogle Scholar
  24. Boyle DL, Takemoto LJ: Confocal microscopy of human lens membranes in aged normal and nuclear cataracts. Invest Ophthalmol Vis Sci. 1997, 38: 2826-2832.PubMedGoogle Scholar
  25. Arrigo AP: Expression of stress genes during development. Neuropathol Appl Neurobiol. 1995, 21: 488-491.View ArticlePubMedGoogle Scholar
  26. Shakoori AR, Oberdorf AM, Owen T: Expression of heat shock genes during differentiation of mammalian osteoblasts and promelocytic leukemia cells. J Cell Biochem. 1992, 48: 277-287.View ArticlePubMedGoogle Scholar
  27. Spector N, Samson W, Ryan C, Gribben J, Urba W, Welch WJ, Nadler LM: Growth arrest of human B lymphocytes is accompanied by induction of low molecular weight mammalian heat shock protein (hsp 28). J Immunol. 1992, 148: 1668-1673.PubMedGoogle Scholar
  28. Spector N, Ryan C, Samson W, Nadler LM, Arrigo AP: Heat shock protein is a unique marker of growth arrest during macrophage differentiation of HL, 60 cells. J Cell Physiol. 1993, 156: 619-625.View ArticlePubMedGoogle Scholar
  29. Sugiyama Y, Suzuki A, Kishikawa M, Akutsu R, Hirose T, Waye MMY, Tsui SKW, Yoshida S, Ohno S: Muscle develops a specific form of small heat shock protein complex composed of MKBP/HSPB2 and HSPB3 during myogenic differentiation. J Biol Chem. 2000, 275: 1095-1114. 10.1074/jbc.275.2.1095.View ArticlePubMedGoogle Scholar
  30. Csermely P, Schnauzer P, Szanto I: Signaling and transport through the nuclear membrane. Biochim Biophys Acta. 1995, 1241: 425-452. 10.1016/0304-4157(95)00015-1.View ArticlePubMedGoogle Scholar
  31. Andley UP, Song Z, Wawrousek EF, Bassnett S: The molecular chaperone alphaA-crystallin enhances lens epithelial cell growth and resistance to UVA stress. J Biol Chem. 1998, 273: 31252-31261. 10.1074/jbc.273.47.31252.View ArticlePubMedGoogle Scholar
  32. Pre-publication history

    1. The pre-publication history for this paper can be accessed here:http://www.biomedcentral.com/1471-2415/3/3/prepub
